Code: TELGV2ME20
Buy Schneider/Telemecanique GV2ME20 online at Wesco.ie - Part of our large Schneider Electric Industrial range of products. In stock for express delivery
€83.83 Ex. VAT
In Stock
Min Qty: 1
QtyAdd

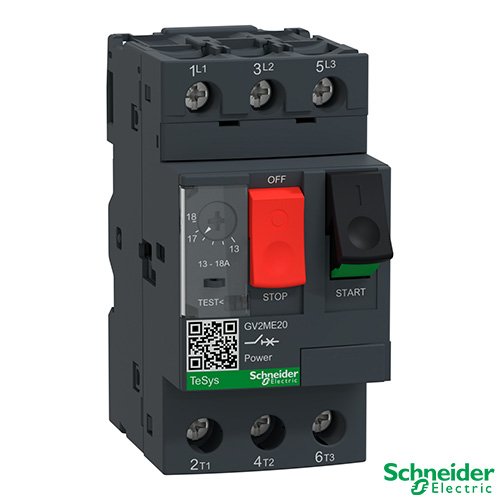

GV2ME MOTOR CB THERM/MAG 13-18A ROCKER
Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals.
TeSys GV motor circuit breaker, 3 poles (3P), 18A/690V, for 3-phase motor applications 7.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 13-18A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Download Datasheet:
Product Specification:
| Type of electrical connection of main circuit: | Screw connection |
|---|---|
| Type of control element: | Push button |
| Switch off technique: | Thermomagnetic |
| Rated operation power at AC-3, 230 V: | 0 kW |
| Rated operation power at AC-3, 400 V: | 7,5 kW |
| Rated operating voltage: | 690 V |
| Rated permanent current Iu: | 18 A |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 15 kA |
| Width: | 45 mm |
| Adjustment range undelayed short-circuit release: | 0 A |
| Device construction: | Complete device in housing |
| Height: | 89 mm |
| With integrated auxiliary switch: | false |
| With integrated under voltage release: | false |
| Phase failure sensitive: | Yes |
| Number of poles: | 3 |
| Degree of protection (IP): | IP20 |
| Thermal protection: | Yes |
| Depth: | 78,2 mm |
| Overload release current setting: | 13...18 A |
